SS316 CF8M 10 Bar Pneumatic Diaphragm Control Valve

Product Categories

POWERFLOW CONTROL CO,. LTD.

Contact Now

SS316 CF8M 10 Bar Pneumatic Diaphragm Control Valve

Name: SS316 CF8M 10 Bar Pneumatic Diaphragm Control Valve
Brand: POWERFLOW
Price: 1 USD

Brand Name : POWERFLOW

Model Number : 2800+1600

Certification : ISO9001. CE. Nepsi

Place of Origin : CHINA

MOQ : 1 Nos

Price : Quotation Offered by Email.

Payment Terms : T/T

Supply Ability : 50Nos/Week for every single Customer.

Delivery Time : 10-15 Days

Valve Body Material : AISI 316L/316

Actuator Material : Plastic

Seal Material : PTFE/EPDM

Working Pressure : 10Bar

Optional Controller : 1500, 1600, 1880 Series

Weight : Depending on valve size

Contact Now

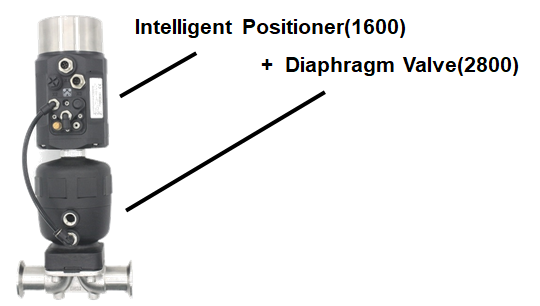

2800 Series SS316(CF8M) Pneumatic Diaphragm Control Valve with 1600 Series Explosion Proof Smart Positioner

1. Product Description

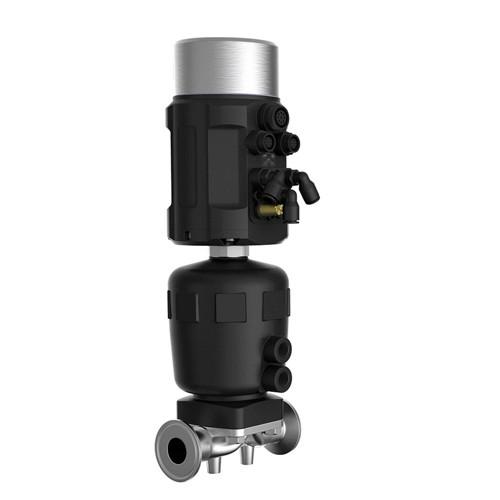

The diaphragm control valve is combined with the intelligent positioner (1600) and 2800 series diaphragm valve. The product is easy to operate and with rich software functions. It can easily be operated via LCD and. It detects the external setting signal and the signal of internal displacement sensor, and adjusts valve stroke quickly and precisely by using automatic control algorithm and PWM control technology.

SS316 CF8M 10 Bar Pneumatic Diaphragm Control Valve

2. 2800 Series Diaphragm Valve Technical Datas

Valve Body Material	Stainless steel 316(CF8M)/316L(CF3M)
Seal Material	EPDM/PTFE
Working Pressure	10Bar
Working Temperature	-20-180 degree centigrade (PTFE) -20-150 degree centigrade (EPDM)
Availably size	DN15-DN80
Availably connection	Thread, Weld, Clamp, Flange
Air Supply	4-8bar(Single-Acting) 2.5-8bar(Double-Acting)
Standard	DIN,SMS,ISO,IDF,RJT,3A,etc
Certificate	CE

3. Assembling

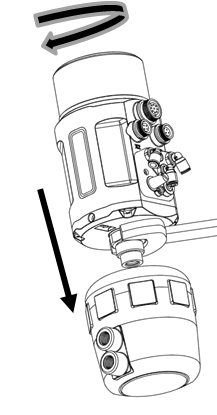

The positioner and Valve is connected by thread. You can easily assemble them with a #32 wrench.

After assembling, the Positioner can still have 360°Rotation to fix to your favourite position.

SS316 CF8M 10 Bar Pneumatic Diaphragm Control Valve

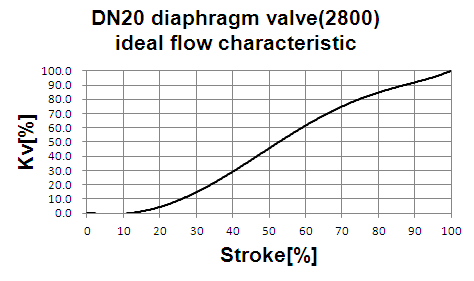

4. 2800 Series Diaphragm Valve Flow Characteristics

Stroke(%)	Kv(%)	Stroke(%)	Kv(%)
0	0	55	54.2
5	0	60	61.5
10	0	65	70.3
15	0	70	75.7
20	5.1	75	79.7
25	7.5	80	85.1
30	16.6	85	88.6
35	22.2	90	92
40	30.3	95	96.1
45	35.1	100	100
50	45.3

SS316 CF8M 10 Bar Pneumatic Diaphragm Control Valve

5. 1600 Series Positioner Schematic Diagram

SS316 CF8M 10 Bar Pneumatic Diaphragm Control Valve

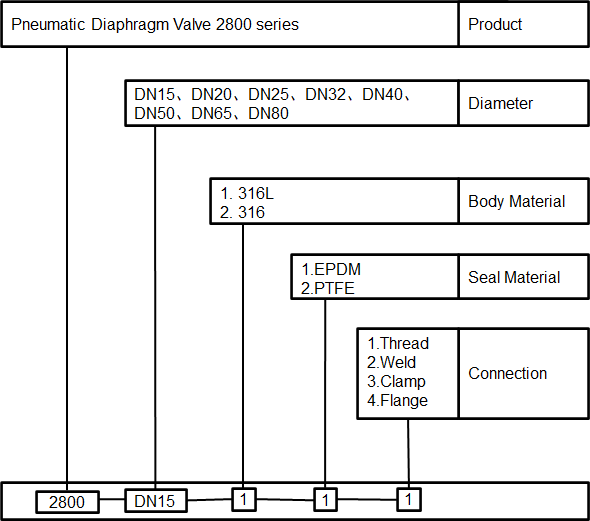

6. 2800 Sereis Type Selection

SS316 CF8M 10 Bar Pneumatic Diaphragm Control Valve

* Default actuator type is Single acting and normally close, Please remark if you need other type of actuators
