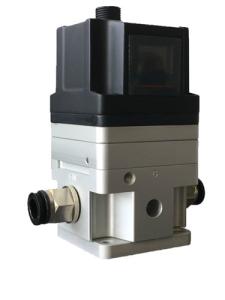

Rc 1/8 Thread Electropneumatic Regulator

Name: Rc 18 Thread Electropneumatic Regulator
Brand: POWERFLOW
Price: 1 USD

Brand Name : POWERFLOW

Model Number : IPR 2010

Certification : ISO9001.

Place of Origin : CHINA

MOQ : 1 Nos

Price : Quotation Offered by Email.

Payment Terms : T/T

Supply Ability : 50Nos/Week for every single Customer.

Delivery Time : 10-15 Days

Pressure Range : 0.005 - 0.1MPa; 0.005 - 0.5MPa; 0.005 - 0.9MPa

Supply Voltage : Current-mode: Below 0.12A; Voltage: DC 24V±10%

Input Signal : Current-mode: DC 4-20mA; Voltage-mode: DC 0-5V, DC 0-10V

Input Resistance : Current-mode: below 250Ω; Voltage-mode: about 6.5KΩ

Ambient and Fluid Temperature : 0 - 50℃

Temperature Characteristic : 2% F.S.

Contact Now

IPR2000 Series 4-20mA Input Signal Intelligent Pneumatic Regulator with Rc 1/8 Thread

1. Product Description

IPR 2000 series regulators can be used universally, for high precision or high speed at the press of buttons. Or for processes requiring precise flexible local regulation of force and pressure. Regulator characteristics ensure optimum results.

2.Technical Datas

Type selection	IPR 2010,2020,2030
Min supply pressure	+0.1MPa
Max supply pressure	0.2MPa /1.0MPa
Pressure range	0.005~0.1MPa 0.005~0.5MPa 0.005~0.9MPa
Supply voltage	Voltage:DC:24V ±10% Current: Below 0.12A
Input signal	Current-mode:DC4~20mA Voltage-mode:DC0-5V, DC0~10V
Input resistance	Current-mode: below 250Ω Voltage-mode: about 6.5KΩ
Output signal	DC1~5V load resistance:above 1KΩ DC4~20mA load resistance: below 250Ω Output accuracy : within 6%
Linear	1%F.S.
Hysteresis	0.5%F.S.
Repeatability	0.5%F.S.
Temperature characteristic	2%F.S.
Pressure display	2%F.S. (Accuracy) 1/1000(Graduation)
Ambient and Fluid Temperature	0~50℃
Protection level	IP65

3. Features

Control pressure Stepless
Fast response & High precision
Easy operation & Compact design

4. Out pressure/ Signal Output

Rc 1/8 Thread Electropneumatic Regulator

5. Out pressure/ Signal Input

Rc 1/8 Thread Electropneumatic Regulator

6. Type Selection

Rc 1/8 Thread Electropneumatic Regulator

Note: POWERFLOW reserves the right to change specifications without notification.
