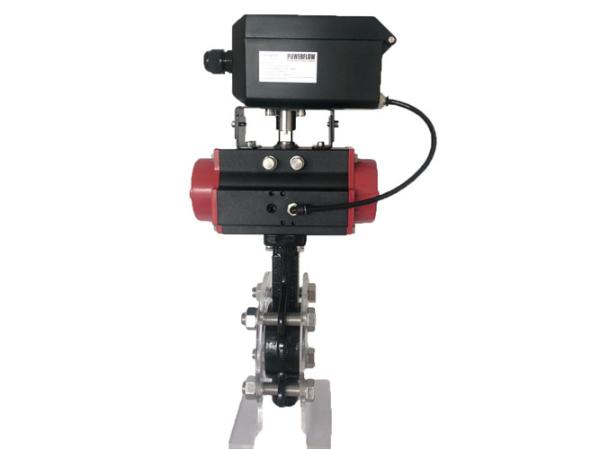

IP66 Electro Pneumatic 0.14-0.7MPa Smart Valve Positioner

Brand Name : POWERFLOW

Model Number : IP6000

Certification : NEPSI, ISO9001, HART, CE

Place of Origin : CHINA

MOQ : 1 Nos

Price : Quotation Offered by Email.

Payment Terms : T/T

Supply Ability : 50Nos/Week for every single Customer.

Delivery Time : 10-15 Days

Packaging Details : CTN, 21*26*16CM

Protection Class : IP66

Feedback Signal : 4 - 20mA

Min. operating current : 3.6mA DC

Stroke Range : Rotary for 30-100°; Linear for 10-100mm

Ambient Temp. : -20 - 70℃

Flow : 55 L/min (Sup=0.14MPa)

Contact Now

IP6000 Series IP66 Protection Class Smart Valve Positioner with Feedback

​1. Product Description

The IP6000 series electro-pneumatic valve positioner is used to control the final control element of pneumatic linear or rotary actuators. The electro-pneumatic positioner moves the actuator to a valve position corresponding to the setpoint. Additional function inputs can be used to block the valve or to set a safety position.

​2.Technical Datas

Material Aluminum
Set-point Signal 4 - 20mA DC
Min. Operating Current 3.6mA DC
Vibration Resistance

0.15mm,10Hz-60Hz,20 cycle/axis

20m/s2,60Hz-500Hz,20 cycle/axis

Recommended range for control valve

≤ 20 m/s2,no resonance peak
Ambient Temp. -20 - 70℃
Gas Source Requirement ISO 8573-1 Class 3
Steady State Air Consumption ≤ 0.4 L/min
Supply Pressure 0.14 - 0.7MPa
Flow 55 L/min (Sup=0.14MPa)
Stroke Control Range Linear 10-100mm; Rotary 30-100°
Electrical Connection M20*1.5
Pneumatical Connection G1/4
Explosion Proof Ex ia IIC T4/T6
Protection Class IP66
Weight 2KG

3. Product type selection

IP66 Electro Pneumatic 0.14-0.7MPa Smart Valve Positioner

Remarks: Power off State option is safe by default. There is no pressure gauge for the type of seperate install positioners.

4. Electrical connections and pneumatic connections

IP66 Electro Pneumatic 0.14-0.7MPa Smart Valve Positioner

5. Structure

IP66 Electro Pneumatic 0.14-0.7MPa Smart Valve Positioner
